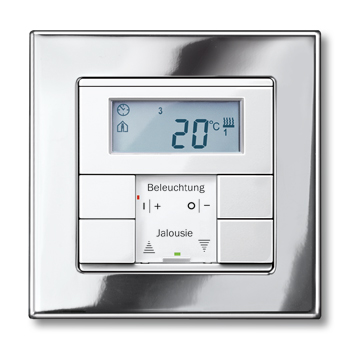

The new KNX push-buttons plus offer large, easy to use operating surfaces and have a bus coupler already integrated. This makes installation easier and prevents the bus coupler being swapped over by mistake. The completely reworked software means KNX push-buttons also combine a lot of new functions:



• Separate control of status LEDs on each key



• Option of dimming lighter and darker or controlling blinds with only a single key



• Calling up and saving scenes



• Pulse edge control with differentiation between long and short key presses with 1 bit, 4 bit or 8 bit



• Edges with 2 bytes



• 8-bit linear regulator function

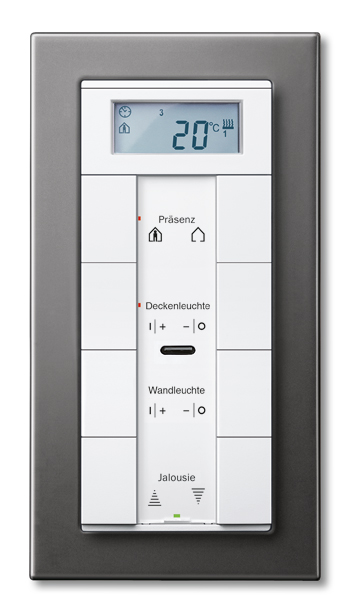

The KNX push-button plus is available in System M. Depending on the requirement, you can choose from a 1-gang, 2-gang, 3-gang or 4-gang push-button  as well as a 4-gang push-button plus with IR receiver. The latter unit can be programmed into existing remote controls as well as using the familiar Distance remote control.
